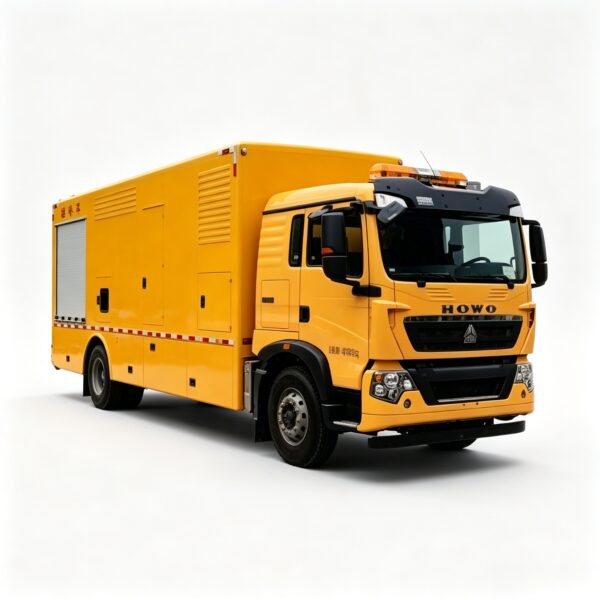

HOWO Drainage & Rescue Vehicle
豪沃排涝救险车
Category
Add Your Heading Text Here
Share To
Description
|
HOWO Drainage & Rescue Vehicle Vehicle Configuration Parameters |
|
| Gross Vehicle Mass | 18000Kg |
| Kerb Weight | 17870Kg |
| Rated Payload | m³ |
| Maximum Speed | 101Km/h |
| Remote Water Supply System |
It is equipped with functions including fire water supply, fire fighting operation and flood drainage rescue.
System rated parameters:
Rated water supply flow rate: 1000 m³/h Rated pressure: 1.0 MPa Motor power: 75 kW Delivery head ≥ 16 m Suction lift ≥ 8 m 6 units of high-flow portable submersible pumps are fitted on each vehicle.
The drainage system features stepless speed regulation, enabling adjustable water output while the submersible pumps are in operation. Flow rate of single pump: 500 m³/h, head: 7-15 m When the flow rate reaches 500 m³/h, the head shall be no less than 10 m, and electric pump efficiency ≥ 52%. The electric pump meets Grade 2 energy efficiency requirements. |
| Generator Set | Rated Voltage:
Three-phase four-wire: 380V±10% Single-phase: 220V±10% |
| Lifting Lighting Lamp (Optional) | One set of pneumatic lifting lighting lamp is installed on the compartment.
Operating Voltage: 220V; Lamp Power: 300W×4=1200W Light Source: LED Illumination height with pole fully extended ≥ 8m; Horizontal rotation angle: 360° |
| Internal Structure of Compartment | Customizable as per customer requirements |
| Overall Dimensions | 9980×2550×3730(mm) |
|
HOWO Drainage & Rescue Vehicle
Chassis Configuration Parameters |
|
| Chassis Manufacturer | **Sinotruk Jinan Truck Co., Ltd. |
| Engine Rated Power | 257kw（350马力） |
| Engine Displacement | 7360ml |
| Engine Emission Standard | Euro 6 |
| Wheelbase | 4700mm |
