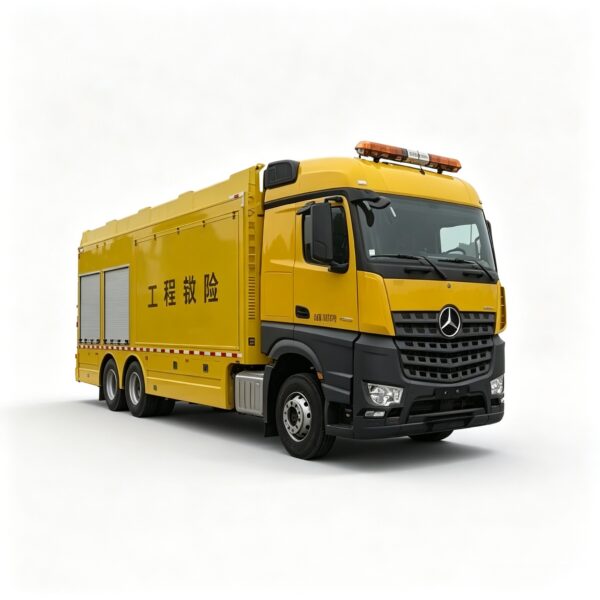

Mercedes-Benz Flood Control Rescue Vehicle
奔驰排涝救险车
Category
Add Your Heading Text Here
Share To
Description
|
Mercedes-Benz Flood Drainage Rescue Vehicle Vehicle Configuration Parameters |
|
| Gross Vehicle Mass | 22000Kg |
| Kerb Mass | 21870Kg |
| Rated Payload | /m³ |
| Maximum Speed | 100Km/h |
| High Intelligent Generator Set | Equipped with 200KW diesel generator set of world-renowned brand |
| Remote Water Supply System | It has functions including fire water supply, fire fighting and flood drainage rescue.
Rated parameters of the system: Rated water supply flow 1000 m³/h, Rated pressure: 1.0MPa, motor power 75kW, Head ≥16m, suction lift ≥8m. 6 sets of large-flow portable submersible pumps equipped per vehicle. The drainage system features stepless speed regulation, and the displacement of submersible pumps is adjustable during operation. Flow rate of single pump: 500m³/h, head 7-15m; The head shall not be less than 10m at the flow rate of 500m³/h, and the efficiency of electric pump ≥52%. The energy efficiency level of the electric pump meets Grade 2 energy efficiency standard. |
| Lifting Lighting System | Xingji YZH4-5.6CF, Lifting height reaches 6.97±0.05M
Horizontal rotation angle: >360° |
| Folding Boom Crane | The truck-mounted crane adopts multi-section folding boom structure, lifting moment 143.2KN·m,
Working radius 6.2m, lifting capacity 6200KG, Outrigger span 5.6m, slewing angle 420°, system flow 40-60L/min |
| overall dimensions | 12090×2540×3850(mm) |
| Mercedes-Benz Flood Drainage Rescue Vehicle
Chassis Configuration Parameters |
|
| Chassis Manufacturer | Daimler Truck AG |
| Rated Engine Power | 266kw（HP） |
| Engine Displacement | 10677ml |
| Engine Emission Standard | Euro 6 |
| Wheelbase | 5700+1350mm |
