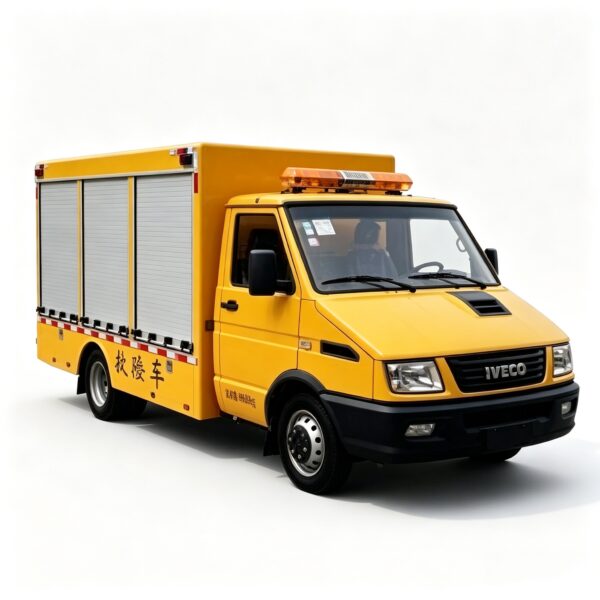

Iveco Drainage & Rescue Vehicle
依维柯排涝救险车
Category
Add Your Heading Text Here
Share To
Description
| Iveco Drainage & Rescue Vehicle
Vehicle Configuration Parameters |
|
| Gross Vehicle Mass | 4480Kg |
| Curb Weight | 4350Kg |
| Rated Payload | m³ |
| Maximum Speed | 120Km/h |
| Box Internal Structure | Reasonable design (customizable according to customer requirements) |
| Generator Set | Rated Voltage: Three-phase four-wire 380V±10%,
Single-phase 220V±10% |
| Remote Water Supply System | 2 sets of high-flow portable submersible pumps per vehicle.
The drainage system is equipped with a stepless speed regulation function, which enables adjustable water displacement during submersible pump operation. Flow rate per pump: 500m³/h, head: 7-15m. When the flow rate reaches 500m³/h, the head shall be no less than 10m, and the efficiency of the electric pump shall be ≥52%. The energy efficiency grade of the electric pump complies with Grade 2 energy efficiency standard. |
| Overall Dimensions | 5910×2070×2600(mm) |
|
Iveco Drainage & Rescue Vehicle Chassis Configuration Parameters |
|
| Chassis Manufacturer | Nanjing Automobile Group Co., Ltd. |
| Rated Engine Power | 95kw（130马力） |
| Engine Displacement | 2798ml |
| Engine Emission Standard | Euro 6 |
| Wheelbase | 3310mm |
