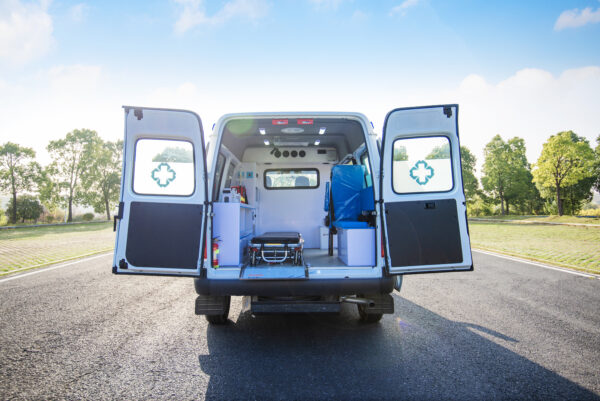

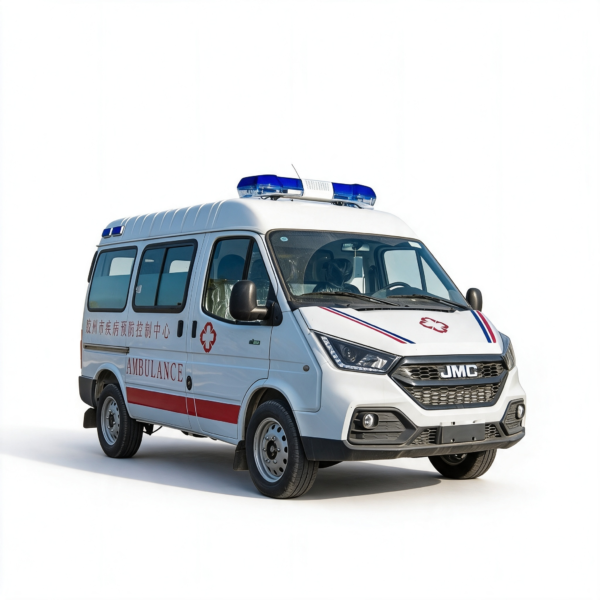

JMC Teshun Short‑WB High‑Roof Chassis Transfer Ambulance
JMC Teshun Short‑WB High‑Roof Chassis Transfer Ambulance
JMC Teshun Short‑WB High‑Roof Chassis Transfer Ambulance
JMC Teshun Short‑WB High‑Roof Chassis Transfer Ambulance
  1. JMC Teshun Short‑WB High‑Roof Chassis Transfer Ambulance
  2. JMC Teshun Short‑WB High‑Roof Chassis Transfer Ambulance
  3. JMC Teshun Short‑WB High‑Roof Chassis Transfer Ambulance
  4. JMC Teshun Short‑WB High‑Roof Chassis Transfer Ambulance

JMC Teshun Short‑WB High‑Roof Chassis Transfer Ambulance

Description

Item Parameter
Overall Vehicle Size (mm) L:5490 * W:1972 * H:2620

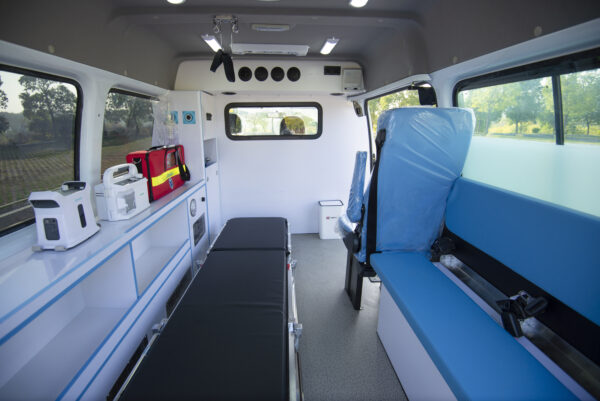

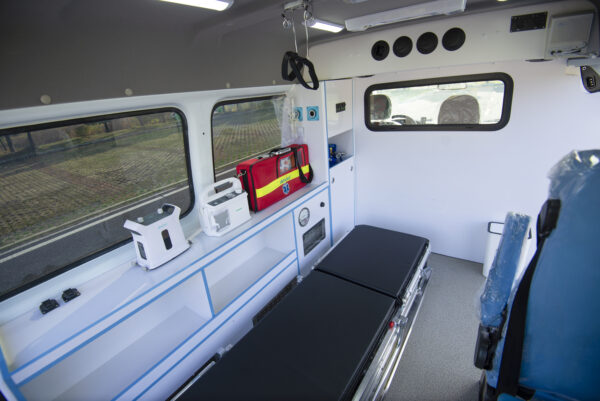

Medical Cabin Internal Size (mm) Approx.2750 *1650 *1700
Wheelbase (mm) 3570
Gross Vehicle Mass (kg) 3750
Curb Weight (kg) 2550
Suspension System Front MacPherson Independent Suspension / Rear Leaf Spring Non‑independent Suspension
Fuel Type Diesel
Fuel Tank Capacity (L) 68
Engine Model JX493ZLQ6
Working Mode Inline 4‑cylinder, High‑pressure Common‑rail Turbocharged Diesel Engine
Displacement (L) 2.771
Power / Horsepower (kw)/(ps) 85 / 116
Max Torque (N·M/rpm) 285 / 2000
Emission Standard China Ⅵ
Drive Mode Front‑engine Rear‑wheel Drive
Transmission 5‑speed Manual Transmission
Maximum Safe Speed (km/h) 120
Tire Specification 215/75R16C
Brake System Front Disc & Rear Drum
Rated Passengers (including driver) 5‑7 persons
Vehicle Configuration ABS brake system;

Roof warning light and siren;

Standard: patient stretcher, medical cabinet, oxygen system;

Optional: negative pressure device, reversing radar & camera, air‑conditioner for medical cabin
