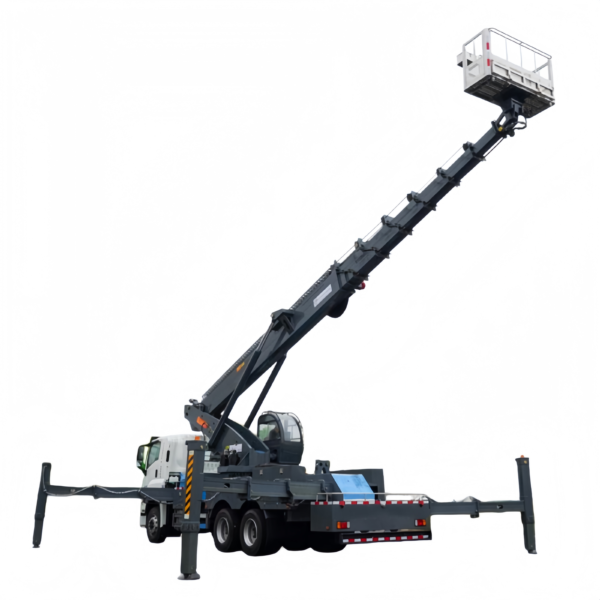

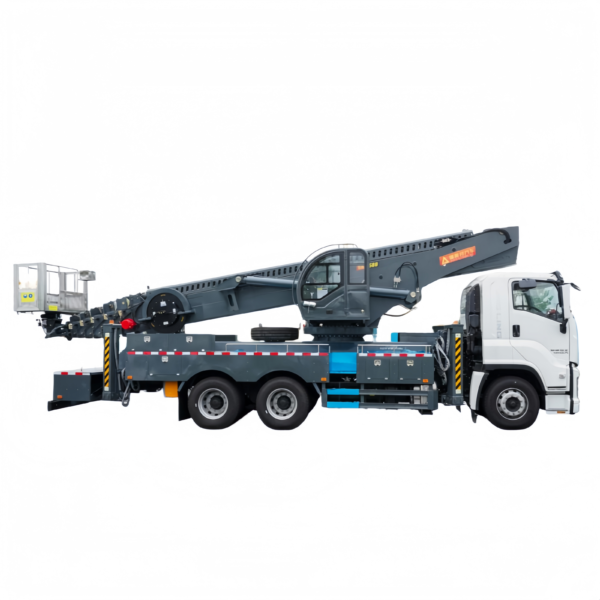

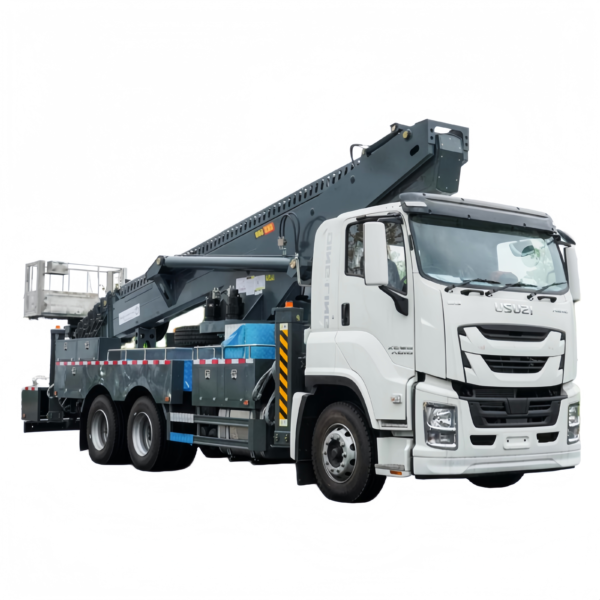

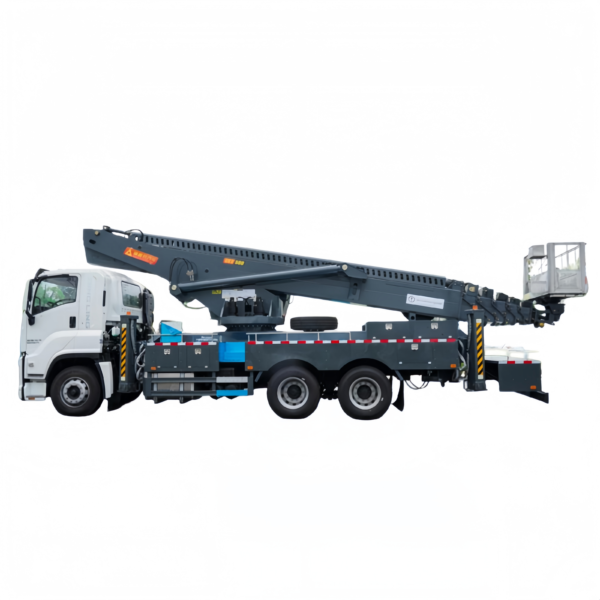

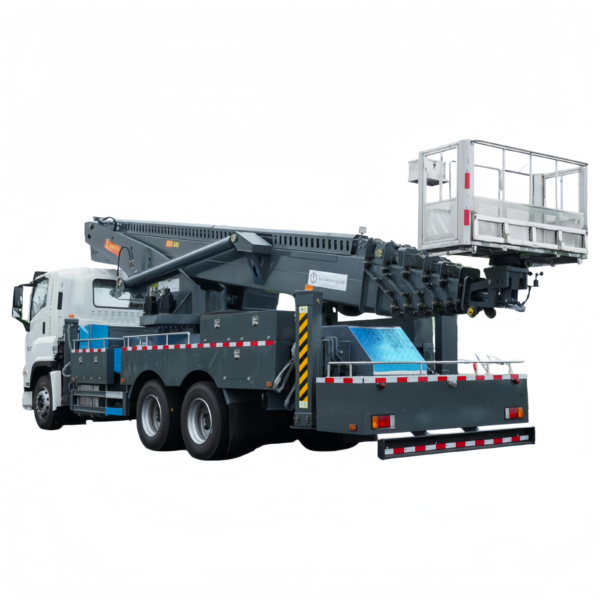

ISUZU 56-meter aerial work vehicle
Description
| Item | Specification |
| Vehicle Model | ISUZU 56-meter aerial work vehicle |
| Chassis Manufacturer | Sinotruk Jinan Truck Co., Ltd. |
| Total Mass | 4495kg |
| Working platform load rating | 200kg |
| MAX. operating height | 56m |
| MAX. operating range | 29m |
| Max Travel Speed | 100km/h |
| Wheelbase | 4350+1370mm |
| Outrigger Span | 9400mm,8600mm |
| Outrigger | Front V-shaped and rear V-shaped double legged support, individually adjustable and synchronously extendable
|
| Operate | Fixed operation of the turntable, wireless remote control box with an electric emergency pump, operation, hydraulic handle operation of the vehicle, equipped the entire vehicle can achieve full hydraulic electric emergency operation. |
| Working platform | 1600×700×1000mm（The size of the hanging basket can be customized according to customer requirements） |
