Description

Item	Specification
Vehicle Model	ISUZU 36-meter aerial work vehicle
Chassis Manufacturer	Qingling Motors Co., Ltd.
Total Mass	9510kg
Working platform load rating	200kg
MAX. operating height	36m
MAX. operating range	25m
Max Travel Speed	110Km/h
Wheelbase	4175mm
Outrigger Span	6200mm , 5900mm
Outrigger	Front V-shaped and rear V-shaped double legged support, individually adjustable and synchronously extendable
Operate	Fixed operation of the turntable, wireless remote control box operation, hydraulic handle operation of the vehicle, equippedwith an electric emergency pump, the entire vehicle can achieve full hydraulic electric emergency operation.
Working platform	1600×700×1000mm（The size of the hanging basket can be customized according to customer requirements）

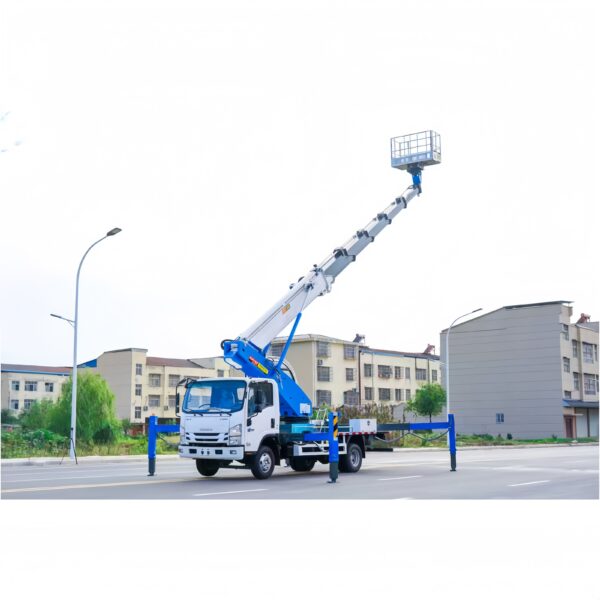

ISUZU 36‑meter Aerial Work Vehicle

Built on the durable ISUZU chassis, this aerial work vehicle reaches a maximum working height of 36 m with a 200‑kg platform rated load. It adopts a six‑section fourteen‑sided synchronous telescopic boom supporting smooth 360‑degree continuous rotation. Front‑V and rear‑V double‑stage outriggers can be adjusted individually or synchronously. Multiple safety protections including soft‑leg detection, upper‑lower interlock, emergency electro‑hydraulic pump and multi‑point emergency stops guarantee secure high‑altitude performance.

Benefiting from reliable chassis power and flexible hydraulic composite‑move functions, it delivers stable performance for high‑reach assignments. It is widely applied in building‑facade renovation, large billboard installation, power‑facility maintenance, municipal construction and bridge inspection, offering dependable high‑altitude operation solutions.
