Description

Item	Specification
Vehicle Model	Howo 28-meter aerial work vehicle
Chassis Manufacturer	Sinotruk Jinan Truck Co., Ltd.
Total Mass	4495kg
Working platform load rating	200kg
MAX. operating height	28m
MAX. operating range	18m
Max Travel Speed	100Km/h
Wheelbase	2800mm
Outrigger Span	4900mm , 5400mm
Outrigger	Front V-shaped and rear V-shaped double legged support, individually adjustable and synchronously extendable
Operate	Fixed operation of the turntable, wireless remote control box operation, hydraulic handle operation of the vehicle, equippedwith an electric emergency pump, the entire vehicle can achieve full hydraulic electric emergency operation.
Working platform	1600×700×1000mm（The size of the hanging basket can be customized according to customer requirements）

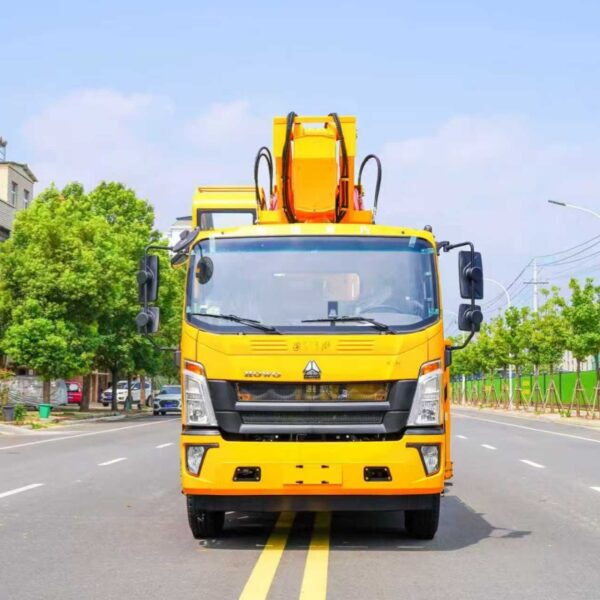

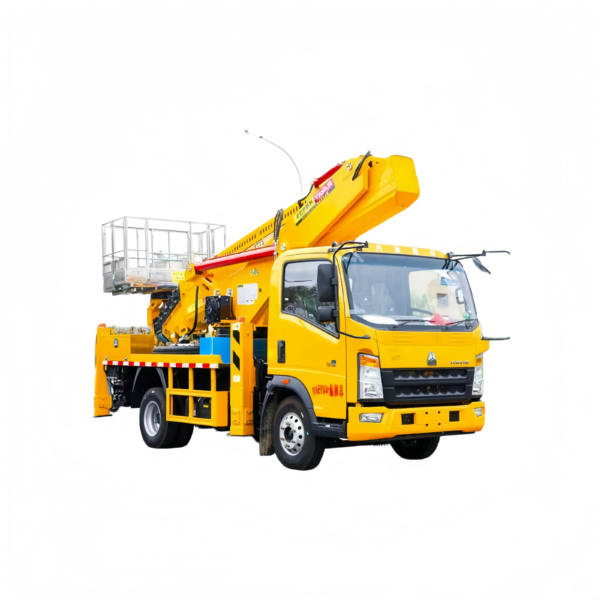

HOWO 28‑meter Aerial Work Vehicle

Built on the reliable SINOTRUK HOWO chassis, this aerial work vehicle reaches a maximum working height of 28 m. It is equipped with a seven‑section fourteen‑sided synchronous telescopic boom supporting 360‑degree continuous rotation. Multiple operation modes are available including turntable control, wireless remote control and ground hydraulic handles. Front‑V and rear‑V double‑stage independently adjustable outriggers, together with soft‑leg detection, upper‑lower interlock and emergency electro‑hydraulic pump, deliver full‑range safety protection.

Benefiting from solid chassis performance and flexible hydraulic system, the truck performs well in complex urban environments. It is widely used for street‑lamp maintenance, power‑facility repair, building‑facade renovation, billboard installation and municipal construction, offering stable and efficient high‑altitude operation solutions.
