Description

Item	Specification
Vehicle Model	ISUZU GIGA 45‑meter Aerial Work Vehicle
Chassis Manufacturer	Qingling Motors Co., Ltd.
Total Mass	18000kg
Working platform load rating	200kg
MAX. operating height	45m
MAX. operating range	27m
Max Travel Speed	105Km/h
Wheelbase	5000mm
Outrigger Span	8600mm , 8600mm
Outrigger	Front V-shaped and rear V-shaped double legged support, individually adjustable and synchronously extendable
Operate	Fixed operation of the turntable, wireless remote control box operation, hydraulic handle operation of the vehicle, equippedwith an electric emergency pump, the entire vehicle can achieve full hydraulic electric emergency operation.
Working platform	1600×700×1000mm（The size of the hanging basket can be customized according to customer requirements）

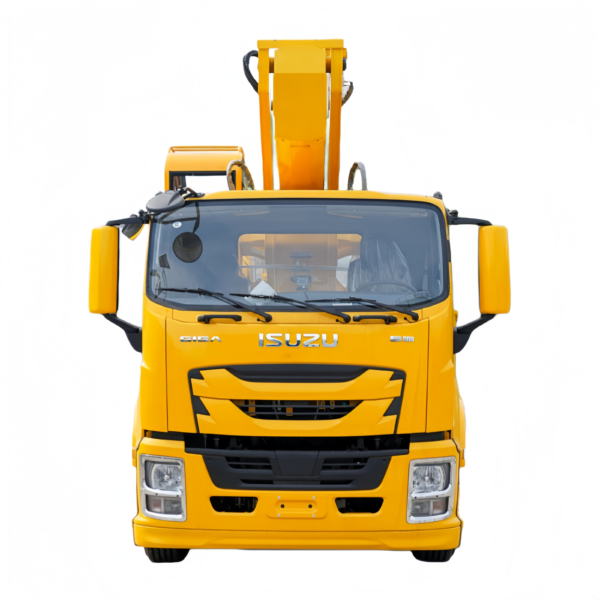

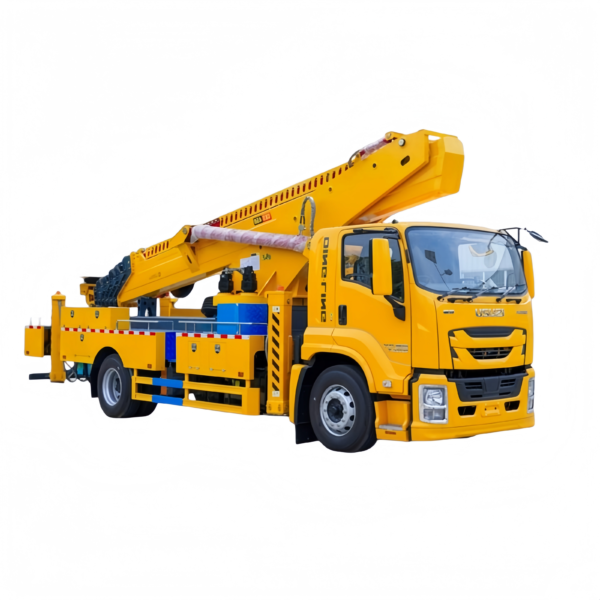

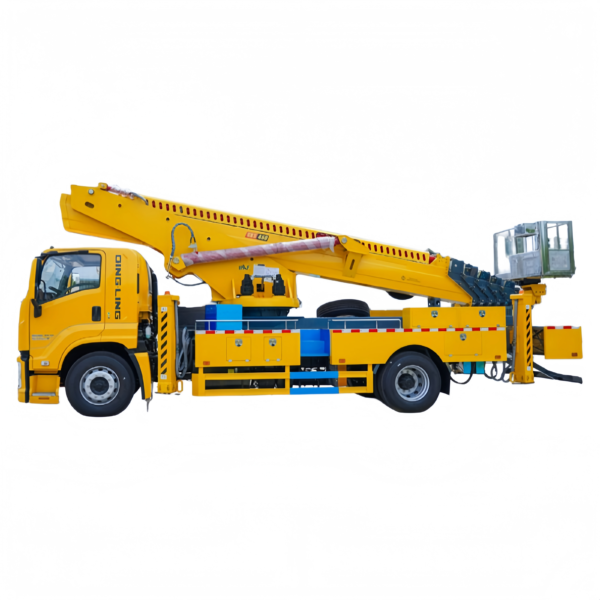

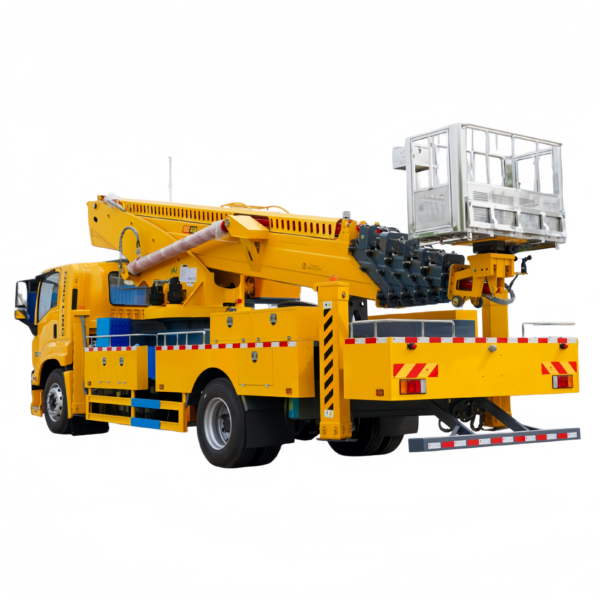

ISUZU GIGA 45‑meter Aerial Work Vehicle

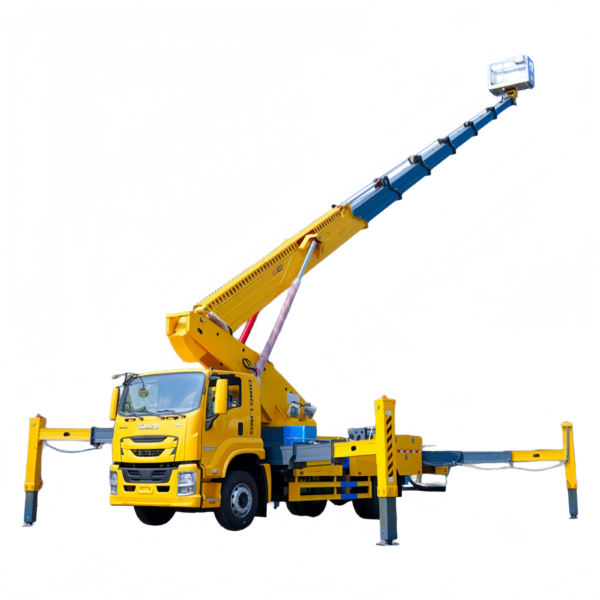

Built on the robust ISUZU GIGA chassis, this vehicle reaches a maximum working height of 45 m with a 200‑kg platform rated load. It adopts a seven‑section sixteen‑sided synchronous telescopic boom supporting 360‑degree continuous rotation and smooth composite movements. Equipped with large‑span independently adjustable outriggers, it integrates multiple safety protections including soft‑leg detection, upper‑lower interlock and emergency electro‑hydraulic pump. Wireless remote control enables flexible and convenient operation.

Thanks to powerful chassis performance and stable hydraulic system, it delivers reliable performance under heavy‑duty ultra‑high‑altitude conditions. It is widely used for high‑rise building renovation, large billboard installation, bridge maintenance and municipal engineering, offering dependable ultra‑high aerial operation solutions.
