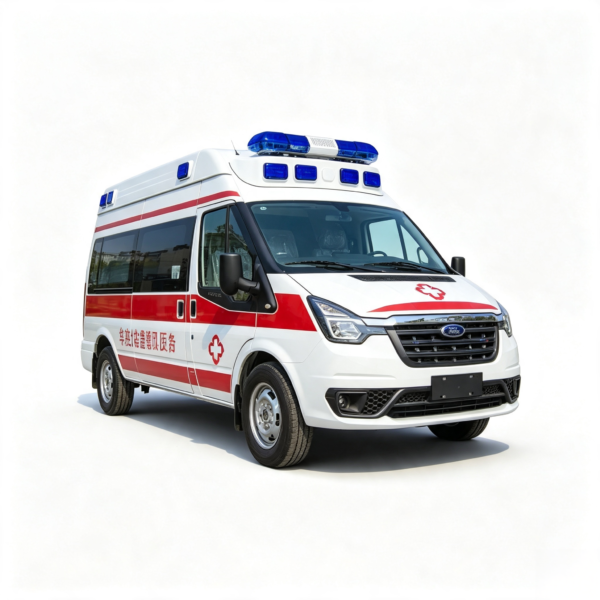

Ford New Generation Transit (V348) Long Wheelbase High Roof Patient Monitoring Ambulance
Description
| Item | Specific Parameter |
|---|---|
| Vehicle Type | Long-wheelbase High-roof Monitoring Ambulance |
| Chassis Brand & Model | Ford Transit V348 (New Generation Transit) Long-wheelbase Chassis |
| Common Announcement Models | CLW5040XJHJ5 / JX5049XJHMK / NKC5048XJH |
| Overall Dimension (L×W×H) | 5780mm × 1974mm × 2600mm |
| Wheelbase | 3750mm |
| Gross Vehicle Mass | 3700kg |
| Crew Capacity | 5-8 persons (driver, paramedics & patient) |
| Engine Model | Ford DURATORQ TDCI 2.2T diesel engine (Puma series) |
| Max Power / Torque | 114kW (155PS) / 350N·m |
| Emission Standard | National VI Diesel Standard |
| Transmission | 6-speed manual transmission |
| Maximum Speed | 145km/h |
| Tire Specification | 215/75R16LT |
| Brake System | Front ventilated disc + rear drum, ABS + EBD |
| Suspension | Front MacPherson independent / rear leaf spring |

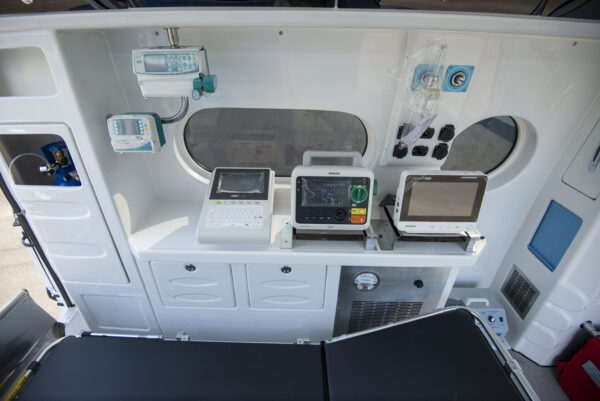

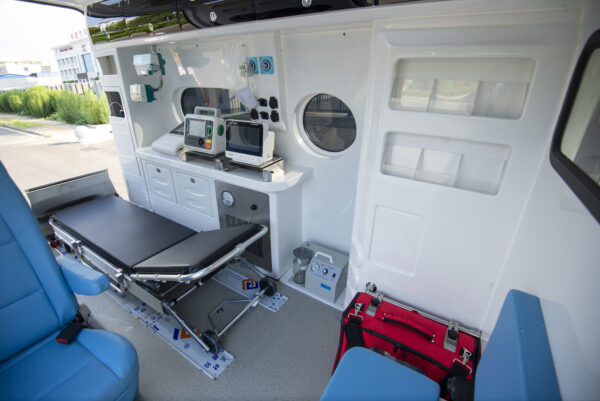

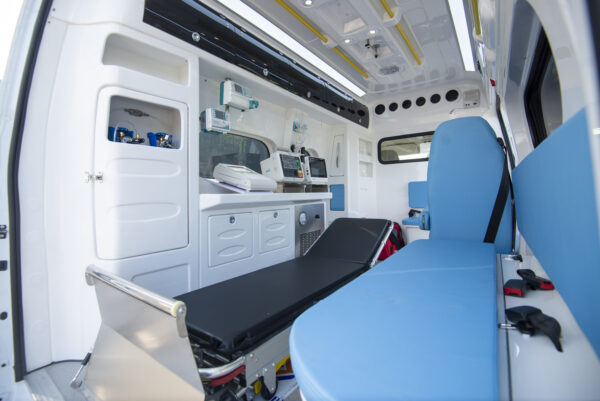

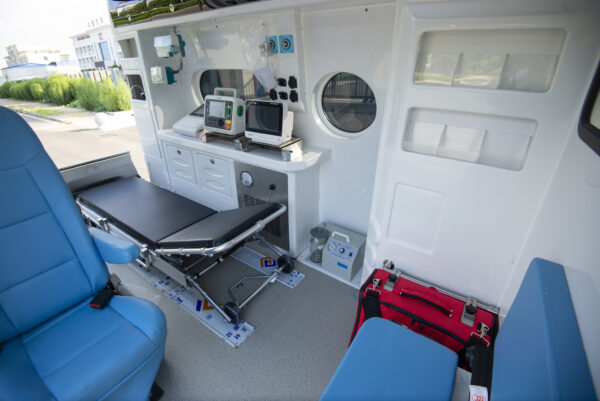

| Core Medical Configuration | Automatic loading stretcher, oxygen cylinder assembly (10L×2), medical instrument cabinet, UV disinfection lamp, infusion hook, doctor seat, roof LED warning light bar, external power supply interface |
| Application Scenario | Pre-hospital emergency rescue, critical patient transfer, hospital medical fleet |
