Description

Item	Specification
Vehicle Model	JMC Shunda Double‑cab 23‑meter Blue‑plate Aerial Work Vehicle
Chassis Manufacturer	Jiangling Motors Corporation, Ltd.
Total Mass	4495kg
Working platform load rating	200kg
MAX. operating height	23m
MAX. operating range	4m
Max Travel Speed	100Km/h
Wheelbase	3360mm
Outrigger Span	4500mm , 5500mm
Outrigger	Front V-shaped and rear V-shaped double legged support, individually adjustable and synchronously extendable
Operate	Fixed operation of the turntable, wireless remote control box operation, hydraulic handle operation of the vehicle, equippedwith an electric emergency pump, the entire vehicle can achieve full hydraulic electric emergency operation.
Working platform	1600×700×1000mm（The size of the hanging basket can be customized according to customer requirements）

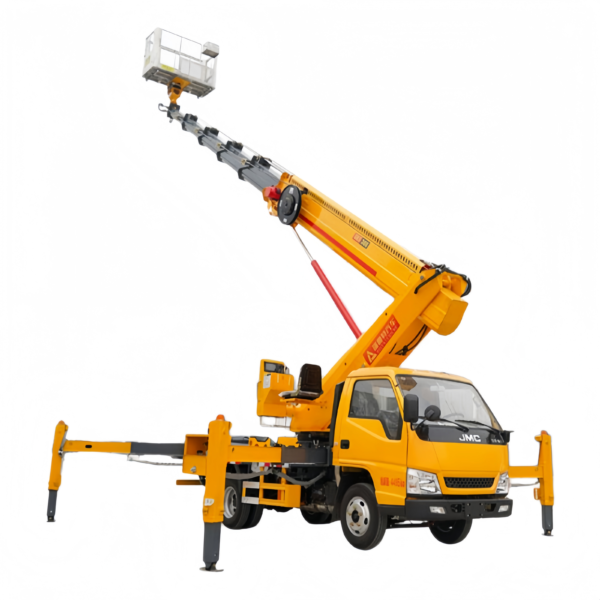

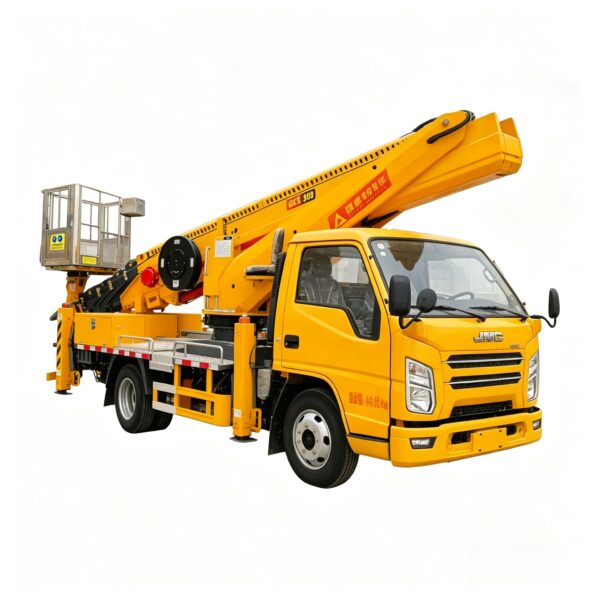

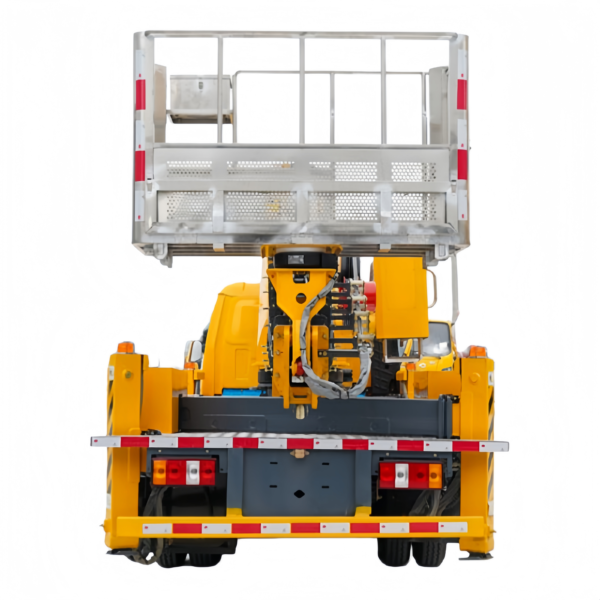

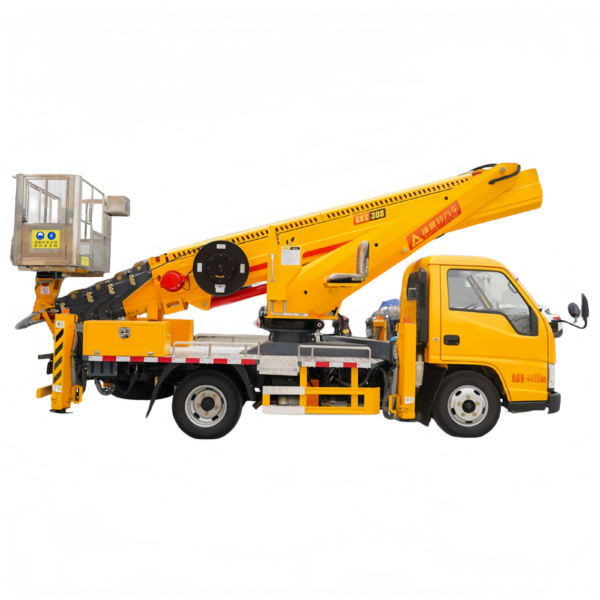

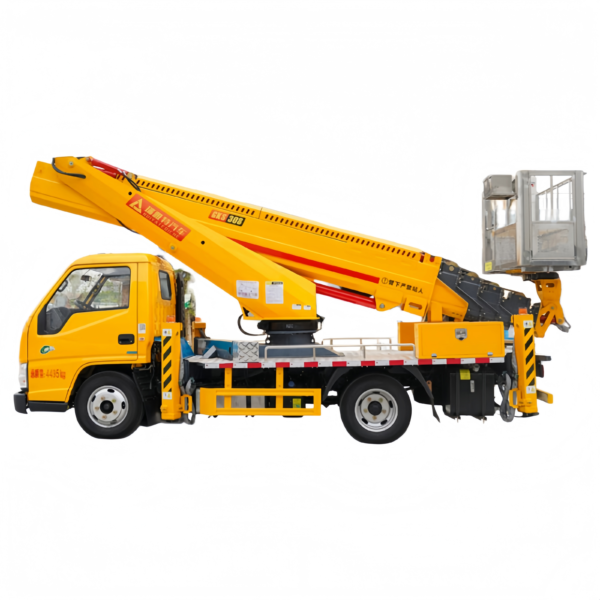

JMC Shunda Double‑cab 23‑meter Blue‑plate Aerial Work Vehicle

Built on the reliable JMC Shunda double‑cab light‑duty chassis, this blue‑plate aerial work vehicle offers a maximum working height of 23 m with a 200‑kg platform rated load. It adopts a five‑section fourteen‑sided synchronous telescopic boom for 360‑degree continuous rotation and smooth composite movements. Independently adjustable front‑V and rear‑V outriggers, soft‑leg detection, upper‑lower interlock and emergency electro‑hydraulic pump guarantee operational safety. It supports multi‑mode operations including wireless remote control.

The double‑row cab accommodates up to 5‑person crew. Compact body ensures good urban accessibility. It is widely applied in street‑lamp maintenance, sign installation, municipal repair and building‑facade projects for city‑level aerial assignments.
