Main Technical Parameters
| Product Name |

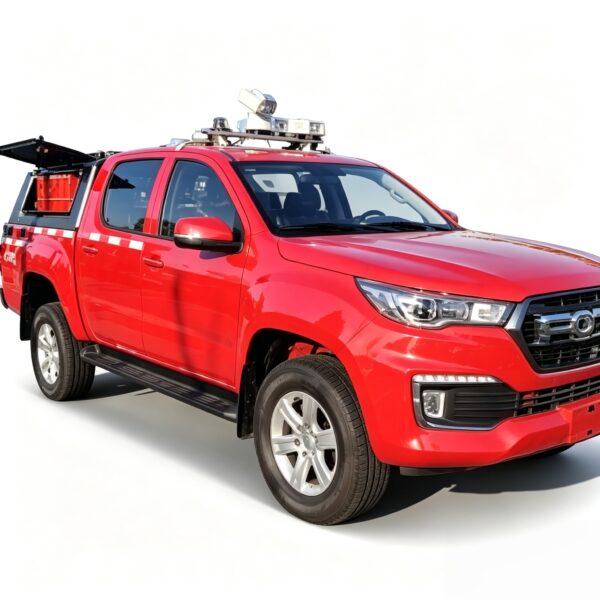

Forest Fire Fighting Equipment Vehicle |
Product No. |
ASRUZ7AW02A |
| Gross Mass(Kg) |
3430 |
Tank Volume (m3) |
|
| Rated Payload(Kg) |
990 |
Overall dimensions
(mm) |
5340,5485×1940,1960,1980×1910,1945 |
| Curb Weight(Kg) |
2115 |
Cargo Box Dimensions(mm) |
1520×1580×440 |
| Rated Passenger Capacity (persons) |
|
Towed Trailer Gross Mass(Kg) |
3150,0 |
| Cab Seating Capacity |
2+3 |
Load‑carrying Mass Utilization Coefficient |
|
| Approach Angle / Departure Angle (°) |
28/20 |
Front Overhang / Rear Overhang(mm) |
955/1275,955/1420 |
| Leaf‑spring Number of Sheets |
-/5 |
Steering Type |
Steering Wheel |
| Number of Axles |
2 |
Wheelbase
(mm) |
3110 |
| Tires |
4 |
Tyre Specification |
265/65R17,265/65R17LT |
| Front Track (mm) |
1600 |
Rear Track (mm) |
1580 |
| Axle Load (kg) |
1300/2130
Maximum speed |
(Km/h) |
155 |
| Others |
- Net engine power: 119 kW. Equipped with OBD.
- Equipped with ABS. ABS Model / Manufacturer: CM0953YL / Guangzhou Ruili Kemi Automotive Electronics Co., Ltd.
- Optional: 5 types of front‑end lamps (smoked‑black or aluminum‑plated available); optional front bumper lower guard and bumper trim strips (chrome‑plated, painted or body‑colored); roof rack (corresponding overall vehicle height: 1945 mm); sunroof; rope hooks; door trim panels; 5 styles of wheel rims; rear bumper (chrome‑plated or painted); fender trims; 2 types of exterior rear‑view mirrors; 2 types of wheel arches (corresponding overall vehicle width: 1960 mm and 1980 mm respectively); outer door water deflectors; side decals; rear decals; tail‑gate trim styles; pickup bed liner.
- Daytime running lamps, front fog lamps, roof rack, sunroof, bull bar, rope hooks, side steps, door trim panels, wheel arches, B‑pillar film and pickup bed liner may be omitted.
- Optional: engine under‑guard, fuel‑tank under‑guard, front radar system. ETC on‑board unit is available as an option for this vehicle.
- Fuel consumption: 9.1 L/100 km. Optional: 11 styles of front grilles including FOTON version (bright chrome‑plated, sparkling crystal grey, black chrome‑plated) or mesh‑style; 6 types of bull bars; 4 types of side steps. Optional towing coupling interface (maximum gross mass of towed trailer: 3150 kg). When towing a central‑axle trailer, drawbar engagement depth: 50 mm; central‑axle drawbar coupling load: 100 kg.
|
| Chassis Specifications |
| Chassis Model |
BJ1037V3MAV‑8A Chassis (Class 2)
BAW Foton Motor Co., Ltd. |
| Fuel Type |
Diesel |
Emission Standard |
GB18352.6-2016
China VI |
| Engine Model |
Chassis Manufacturer |
Engine Displacement
(ml) |
Rated Engine Power
(Kw) |
| 4F20TC12 |
Beiqi Foton Motor Co., Ltd.
|
1968 |
120 |
