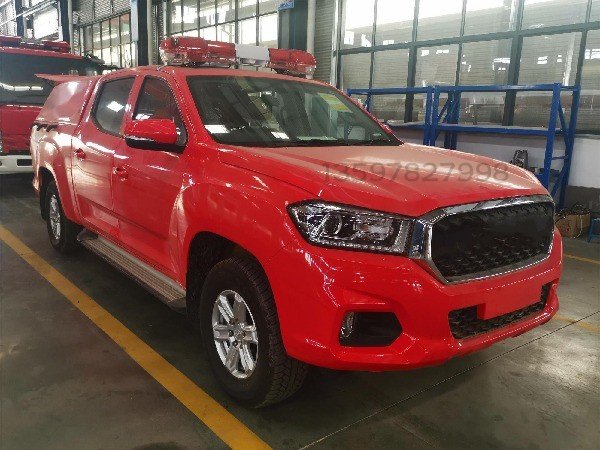

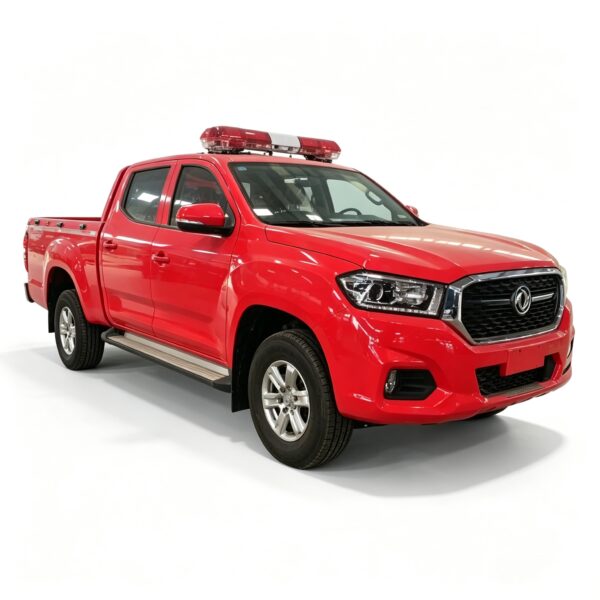

SAIC MAXUS Water Mist Fire Truck
大通水雾消防车
Category
Add Your Heading Text Here
Share To
Description
|
MAXUS Water Mist Fire Truck Vehicle Configuration Specifications |
|
| Gross Vehicle Weight | 2960Kg |
| Curb Weight | 2265Kg |
| Rated Payload Capacity | 0.32 m³ |
| Maximum Speed | 140Km/h |
| Overall Dimensions | 5665×1890×1935(mm) |

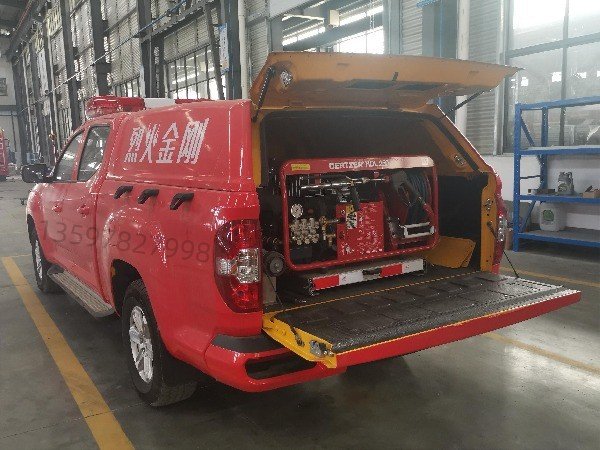

| Water Pump Technical Specifications | Gasoline Engine Model: Honda GX390
Water Pump Model: XWP36.15N Italy AR Plunger Pump Outlet Pressure: 10Mpa Flow Rate: 30L/min Spray Distance: Straight stream water mist 14m; High-pressure fine water mist 10m Hose Reel Length: 30m |
| Engine | Honda 5.5HP (Electric Start) |
|
MAXUS Water Mist Fire Truck Chassis Configuration Specifications |
|
| Chassis Manufacturer | SAIC MAXUS Automotive Co., Ltd. |
| Rated Engine Power | 120kw（165HP） |
| Engine Displacement | 1996ml |
| Engine Emission Standard | Euro 6 |
| Wheelbase | 3470mm |
