Tank Volume (m³)

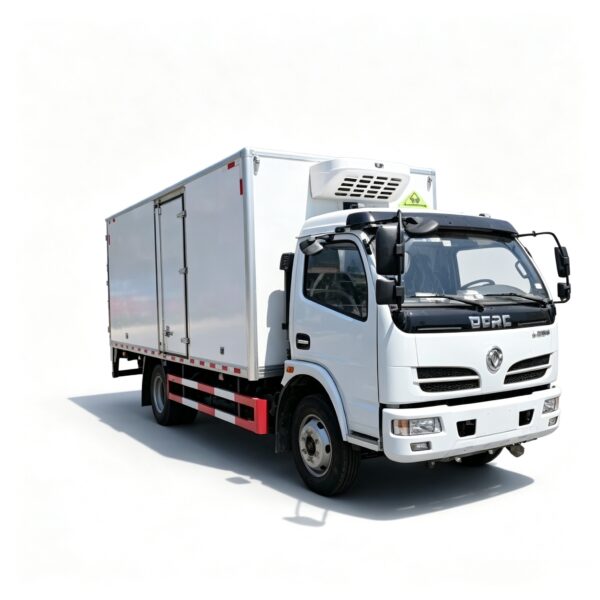

This vehicle is a dangerous goods transport vehicle. The top of the cargo box is enclosed and cannot be opened.

The cab can be selected along with the chassis; optional configurations include the structure without side doors, different side door designs for the cargo box, and refrigeration units with the same cooling capacity. Hazard classification item No.: 6.2.

A hydraulic tail lift is mounted at the rear. The horizontal length of the tail lift when folded is 300 mm, and the mass of the tail lift is 450 kg.

The side and rear underrun protection is made of Q235 steel and connected by welding. The rear protection has a section height of 100 mm, section width of 50 mm, and a ground clearance of 460 mm at the lower edge.

When the vehicle is optioned without the rear tail lift, the rear underrun protection is also made of Q235 steel with welded connection, section height 100 mm, section width 50 mm, and lower edge ground clearance 460 mm.

Only chassis equipped with front exhaust pipe, radial tires, speed limiting device, required braking system and front disc brakes are adopted. The maximum speed is limited to 80 km/h.

A tachograph with satellite positioning function is installed.

ABS manufacturer and model: Xiangyang Dongfeng Longcheng Machinery Co., Ltd. / ABS/ASR-24V-4S/4M.

Engine models and corresponding fuel consumption values (L/100km):

YCS04190-68 (20.3), D25TCIF1 (20.3), D30TCIF1 (20.2), D40TCIF1 (20.3), NV30-C6D (20.3), CY4SK261 (20.1), CY4SK361 (20.4), YCY30165-60 (21.1).

Explosion-proof tire devices are fitted on the steering axle.

Different exterior styles are optional. On-board ETC device can be optionally installed.

Different layout positions of fuel tank, storage battery and air reservoir are available as per the chassis configuration.
